NEEDLE VALVE | 15,000 PSI (1034 BAR)

€163,00 – €286,00

Low Pressure Needle Valves are available in applications such as the chemical/petrochemical, water-blast, water-jet, research, and oil and gas industries. High Pressure Technology valve line utilizes a NPT-F connection design providing a leak tight reliable connection for gas and liquid service. These valves are complemented by a complete line of fittings, tubing and accessories.

Pressure: 15,000 psi (1034bar)
Connections from 1/4” to 1"” NPT threads
Non-rotatig stem and bar stock body design
Metal-to-metal seating achive ideal shutoff, longer stem/seat service lifetime for abrasive flow
Excellent corrosion resistance and greater durability for repeatd on/of cycles
RPTFE standard paking material
Packing RPTFE can be operated from –100°F (-73°C) to +
600°F (316°C)
The locking device of packing gland is reliable
3.1 (UNI EN 10204) certificate included
Standard body material AISI 316/316L

Scegli

Compare

NEEDLE VALVE | 20,000 PSI (1379 BAR)

€182,00 – €299,00

Medium Pressure Needle Valves are available in applications such as the chemical/petrochemical, water blast, water-jet, research, and oil and gas industries. In all version Medium Pressure Needle Valves Gland Nut and Collar are included.

Pressure: 20,000 psi (1379 bar)
Connections from 1/4” to 9/16” coned and threaded tube
Non-rotatig stem and bar stock body design
Metal-to-metal seating achive ideal shutoff, longer stem/seat service lifetime for abrasive flow
Excellent corrosion resistance and greater durability for repeatd on/of cycles
RPTFE standard paking material
Packing RPTFE can be operated from –100°F (-73°C) to +
600°F (316°C)
The locking device of packing gland is reliable
3.1 (UNI EN 10204) certificate included
Standard body material AISI 316/316L

Scegli

Compare

NEEDLE VALVE | 30,000 PSI (2068 BAR)

€208,00 – €377,00

High Pressure Needle Valves are available in applications such as the chemical/petrochemical, water blast, water-jet, research, and oil and gas industries. In all version Medium Pressure Needle Valves Gland Nut and Collar are included.

Pressure: 30,000 psi (2068bar)
Connections from 1/4” to 9/16” coned and threaded tube
Non-rotatig stem and bar stock body design
Metal-to-metal seating achive ideal shutoff, longer stem/seat service lifetime for abrasive flow
Excellent corrosion resistance and greater durability for repeatd on/of cycles
RPTFE standard paking material
Packing RPTFE can be operated from –100°F (-73°C) to +
600°F (316°C)
The locking device of packing gland is reliable
3.1 (UNI EN 10204) certificate included
Standard body material AISI 316/316L

Scegli

Compare

NEEDLE VALVE | 60.000 PSI (4137 BAR)

€221,00 – €390,00

Pressure: 60,000 psi (4137bar)
Connections from 1/4” to 9/16” coned and threaded tube
Non-rotatig stem and bar stock body design
Metal-to-metal seating achive ideal shutoff, longer stem/seat service lifetime for abrasive flow
Excellent corrosion resistance and greater durability for repeatd on/of cycles
RPTFE standard paking material
Packing RPTFE can be operated from –100°F (-73°C) to +
600°F (316°C)
The locking device of packing gland is reliable
3.1 (UNI EN 10204) certificate included
Standard body material AISI 316/316L

Scegli

Compare

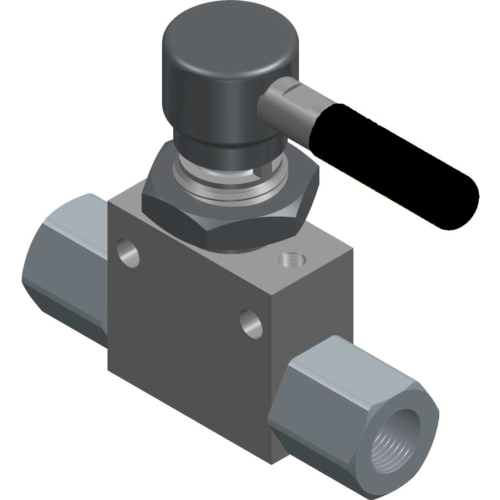

BALL VALVE | 15,000 PSI (1034 BAR)

€420,00 – €532,00

Low Pressure ball valves are designed to provide high performance in process plants, are available in many variants that differ in size, connections and materials employed. The design of this valves are compact to facilitate their integration within existing plants and the use of materials with high resistance to corrosion, abrasion and vibration, considerably extends their productive life.

Floating Ball Valve
Pressure: 20,000 psi (1379 bar)
Connections from 1/4” to 1/2” NPT-F thread
Two way configuration
PEEK seats offer excellent resistance to chemicals and wear/abrasion.
Full bore flow to minimizes pressure drop
Excellent corrosion resistance and greater durability for repeatd on/of cycles
Panel mounting
Stem packing RPTFE glass filled teflon
3.1 (UNI EN 10204) certificate included

Scegli

Compare

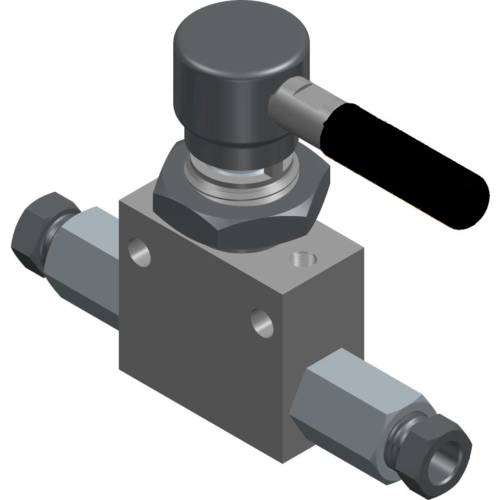

BALL VALVE | 20,000 PSI (1379 BAR)

€390,00 – €494,00

Medium Pressure ball valves are designed to provide high performance in process plants, are available in many variants that differ in size, connections and materials employed. The design of this valves are compact to facilitate their integration within existing plants and the use of materials with high resistance to corrosion, abrasion and vibration, considerably extends their productive life.

Floating Ball Valve
Pressure: 20,000 psi (1379 bar)
Connections from 1/4” to 9/16” coned and threaded tube
Two way configuration
PEEK seats offer excellent resistance to chemicals and wear/abrasion.
Full bore flow to minimizes pressure drop
Excellent corrosion resistance and greater durability for repeatd on/of cycles
Panel mounting
Stem packing RPTFE glass filled teflon
3.1 (UNI EN 10204) certificate included

Scegli

Compare

Medium and High Pressure SS Tubings

€56,00 – €816,00

Cold draw seamless tubing From 1380 to 4150 bar (20000 to 60000 psi) Description Cold drawn thick wall seamless tubing for fluid or gas high pressures applications such as hydraulic, test equipment, waterjet and water-cutting Material Stainless steel TP316/316L Also available upon request in Hastelloy, Duplex, Superduplex, Inconel and Monel Standard 6 meters (20 feet) Also available in different lengths upon request External surface finish Bright finish, free from lumps, flaws and fissures Inner surface finish Minimum 100 RMS = 2,3 Ra μm = 92 AARH Tolerance OD and ID: ±0,1 mm WT: ±10% Temperature range -252°C to +649°C (-421°F to +1200°F)
